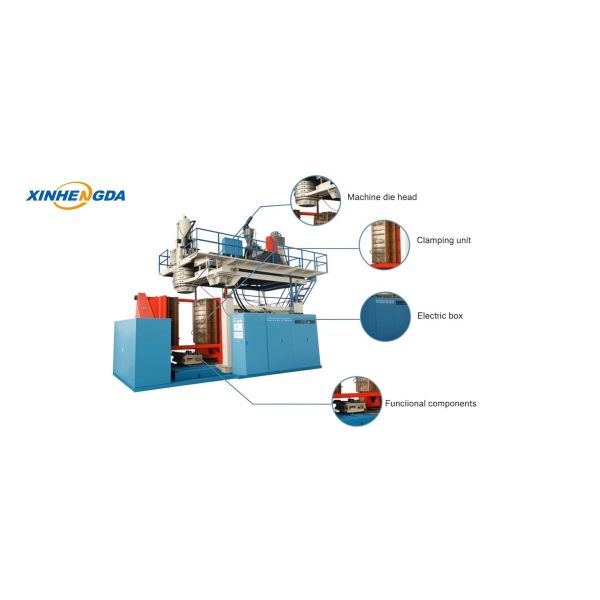

1000L 3-layer full-automatic plastic blow molding machine Customizable
- The screw adopts IKV design, with high potency melt to make sure the material wellmixed.
- Adopt frequency control of motor system to reduce the power consumption.-Adopt Parison thickness controller Moog 100 points, to make thickness even andadjust the tank weight in big span.
- Fully automatic, easy to operate, two women can operate machine, whole productionline need 3 or 4 person only.
- High output versus Roto molding machine-Save raw material 25% -35% versus Roto tanks.
- Perfect impact resistance versus Roto tanks.-The mechanical arm can take out the product automatically
The XHD1000L 3-layer full-automatic plastic blow molding machine adopts an IKV-designed screw and servo hydraulic system, combined with a MOOG wall thickness controller. It can produce 1-3 layer plastic containers with a capacity range of 200-1200L, compatible with HDPE/HMW-HDPE raw materials. Featuring full automation and high energy efficiency, the machine is certified by CE and SGS, making it widely suitable for mass production of large-scale plastic containers
1.Full automatic production: Integrates automatic feeding, molding, wall thickness adjustment, robot part picking and other functions, no manual intervention in core processes.
2.Precise control: MOOG 200-point axial wall thickness controller ensures uniform container wall thickness; servo hydraulic system with fast response.
3.Flexible adaptation: Supports products of 200L-1200L, switchable 1-3 layer molding modes, compatible with customized needs such as 220L double L-ring chemical drums.
4.Intelligent operation and maintenance: Multi-language interface, peak-shifting and progressive heating control, with fault diagnosis and easy maintenance design
1.High efficiency and energy saving: Saves 25%-35% raw materials compared with rotational molding machines, servo system saves over 40% energy, average energy consumption only 180KW.
2.Outstanding production capacity: Melting capacity 400KG/H, output far exceeds traditional rotational molding machines.
3.Excellent quality: Products have better impact resistance than rotational molding products, with high wall thickness uniformity.
4.Easy operation: Only 2 people needed to operate the main machine, and 3-4 people for the entire production line.
5.After-sales guarantee: 1-year warranty, including on-site installation, personnel training and mold commissioning services.
1.High-end configuration: Core components adopt well-known brands such as , MOOG and Yuken; materials use high-quality steel like 38CrMoAl.
2.Optimized structure: 3-piece double pull rod clamping unit, elevating machine frame design for easy mold change; independent air station and hydraulic station for convenient maintenance.
3.Precise temperature control: Composite temperature control of cast aluminum heating ring + air cooling + water cooling; peak-shifting heating for die head and screw to reduce energy consumption.
4.Safety and reliability: Equipped with protective cover and guardrail, stable operation in 0-45℃ environment away from magnetic field interference.
5.Flexible customization: Supports mold customization according to customer drawings and sizes, compatible with production of various large-capacity plastic containers.
Application Scenarios
Mainly used for producing 200L-1200L large-capacity plastic containers, including chemical drums (220L double L-ring drums), liquid storage tanks, packaging barrels, etc. It is suitable for chemical, food, , environmental protection and other industries, meeting the packaging needs of liquid storage, transportation and other scenarios, especially for large-scale and high-standard plastic container production lines.
